The operator of the atmosphere tube furnace should have the corresponding national electrical equipment operation qualification and be familiar with the technical documents such as the accompanying instrument manual of the electric kiln!

Temperature system operation:

The user's switch board supplies power to the electric furnace, and at this time, the program table is powered on. Set the instrument according to the temperature instrument manual (such as P, I, D parameters), prepare the heating program according to the process requirements, turn on the heating knob, and make the heating power reach 6KW. The heating power can be calculated using the following formula:

Heating power=instrument voltage x instrument current

The normal heating current is about 22A, and the heating voltage is about 220V.

Heating stop: After the program temperature ends, execute time=0 segments of the program, and heating ends. Turn the stop button to the off position. Disconnect the user switch.

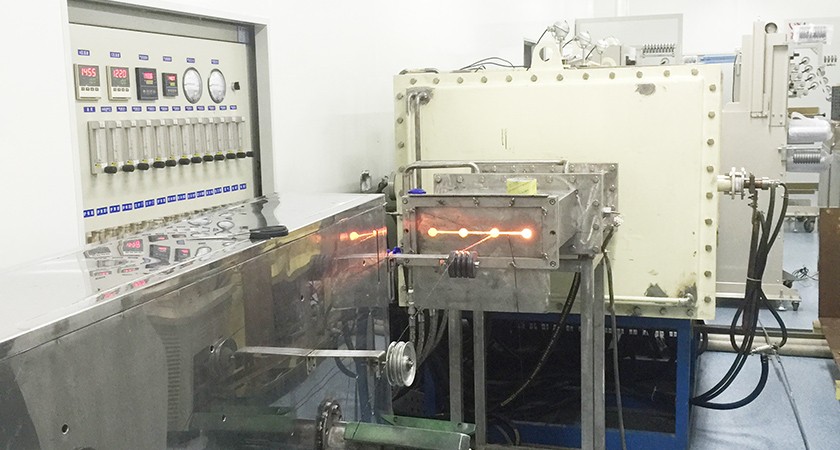

Operating method of atmosphere tube furnace

According to the laboratory's usage requirements, intermittent manual loading and unloading of materials are adopted. When loading, place the material box on the material bowl bracket, open and remove the sealing end cover at one end of the tubular furnace tube, place the material box bracket with the material box, and then install the sealing end cover on the furnace tube flange and tighten the clamp bolt. Then connect with the process atmosphere until the oxygen content in the furnace tube meets the process requirements for heating and sintering. After the product sintering process is completed, a small amount of process atmosphere should continue to be introduced and the temperature should be lowered until the temperature inside the furnace is lower than the process requirements. Only then can the sealing end cover of the furnace tube be opened to remove the product.
